Reasonable price for Rotary Screw Feeder - Positive Pressure Conveying Drop Through Rotary Valve – Zili
Reasonable price for Rotary Screw Feeder - Positive Pressure Conveying Drop Through Rotary Valve – Zili Detail:
Video
Product Description
·Application: food, feed, chemical industry or field
·Applicable wind network: positive pressure, mixed air network
·Applicable materials: powders, particles, or broken materials with a diameter of less than 3 mm
·Function: pneumatic conveying, material receiving and discharging process ensure the stable pressure of the wind network system.
·Performance characteristics: direct drive, full bearing external structure, NJ separable bearings, modular seal combination, can quickly change the seal form according to demand
·Product patent: 201621428932.7
|

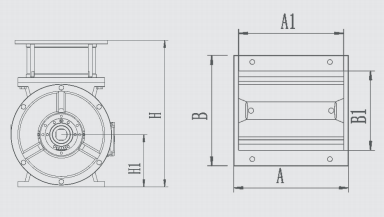

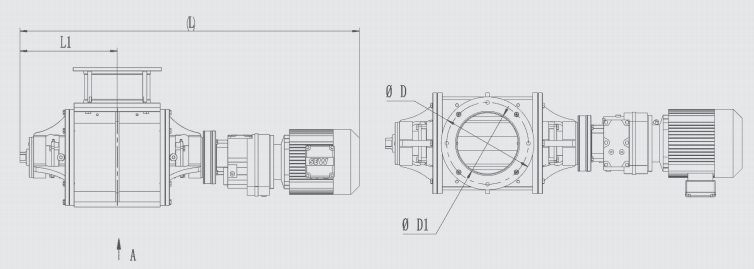

Type |
Volume (L) |
Dimensions (mm) |
Maximum Pressure (Mpa) |
Applicable Temperature (℃) |
|||||||||
|
L |
L1 |
H |
H1 |
D |
D1 |
A |
A1 |
B |
B1 |
||||
|
Z5HQ-Z-G/P |
5 |
936 |
249 |
423 |
150 |
225 |
145 |
170 |
150 |
250 |
180 |
0.4 |
135 |
|
Z7HQ-Z-G/P |
7 |
976 |
269 |
423 |
150 |
245 |
165 |
210 |
188 |
250 |
180 |
0.4 |
135 |
|
Z9HQ-Z-G/P |
9 |
1026 |
294 |
423 |
150 |
265 |
190 |
260 |
238 |
250 |
180 |
0.4 |
135 |
|
Z12QQ-Z-G/P |
12 |
988.5 |
269 |
548 |
215 |
265 |
190 |
260 |
192 |
300 |
237 |
0.4 |
135 |
|
Z16QQ-Z-G/P |
16 |
1038.5 |
294 |
548 |
215 |
290 |
215 |
310 |
242 |
300 |
237 |
0.4 |
135 |
Product detail pictures:
